訂貨號01
品牌江陰盟創
貨號216
型號GFSJ-8/16/32
適用物料通用
應用領域制藥、食品、化工、飼料
生產能力150-1000（kg/h）
主軸轉速1000-2400（r/min）
進料粒度≤6-15（mm）
電機功率4-11（KW）
出料粒度10-120（mm）
外形尺寸1050*600（m）
重量150-320（kg）
粉碎程度0-120目
物料含水量5

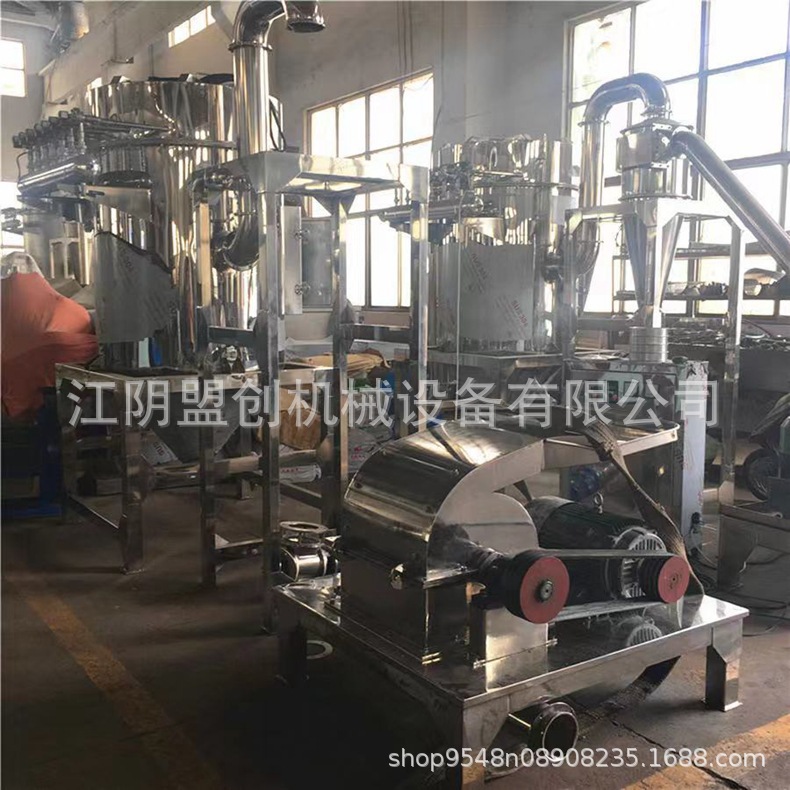

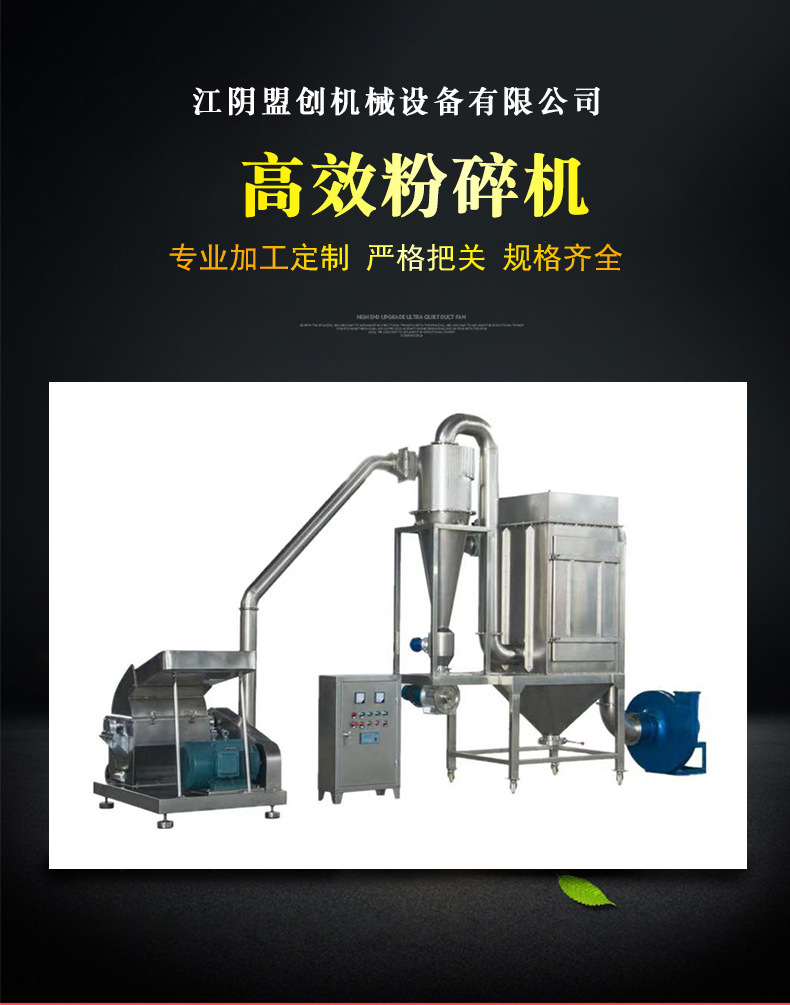

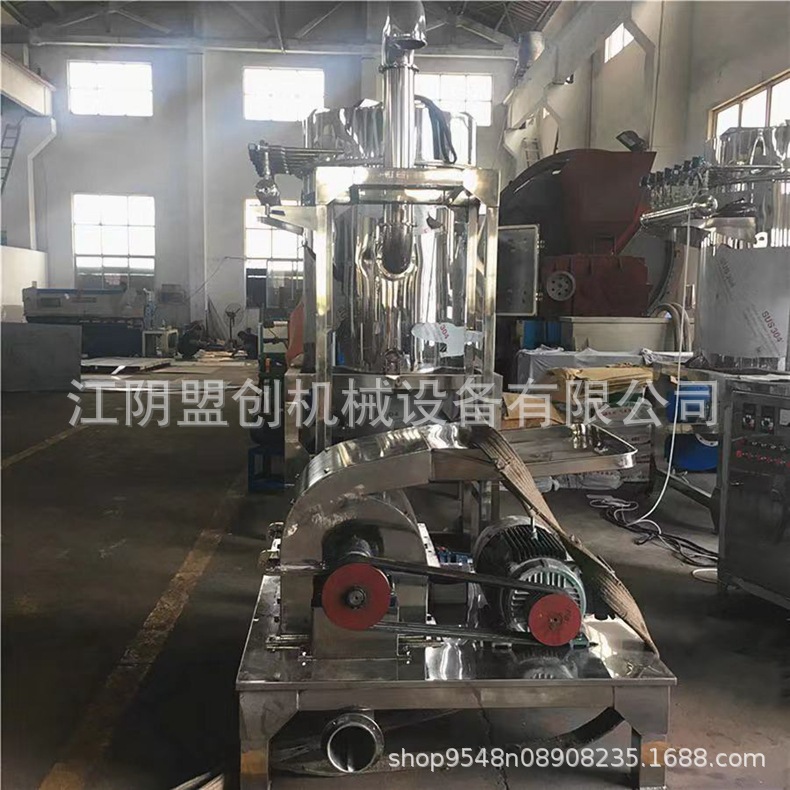

GFSJ系列高效粉碎機 GFSJ Series High Efficiency Mill
主要用途 Main Application
本機采用混合噴粉法原理設計研制而成，廣泛適用于制藥、食品、化工等行業的物料粉碎。
The machine is developed with the method of mixed powder jetting,which is widely applied for the material grinding for the trades of pharmaceutics,chemical and foodstuff,etc.
特點 Characteristics
本機結構簡單，粉碎室拆裝與清洗方便，具有運轉平穩、移動方便、噪音低、粉碎效果好等優點。
The machine has a simple structure and is easy to be installed and dismantled and cleaned,with the features of stable running,convenient moving,low noise and high grinding efficiency,etc.
工作原理 Working Method
本機屬高速運轉機械，被粉碎物經高速刀片剪切獲得粉碎，該機還可根據不同物料選用各種形狀及尺寸不同的刀片，粉度大小通過更換篩選或調整速度獲得。
The machine is a high speed running one.The target material is smashed by the cutting and grinding of high-speed knives,of which the figure and size of knives can be seletcted in accordance with different materials and the size of granules can be acquired by changing of the screen and regulating the speed.
技術參數 Technical Date
型號 Model | 8型 | 16型 | 32型 |
生產能力(kg/h) Capacity | 10-100 | 50-300 | 100-500 |
成品細度 Fineness of finished products | 12-120 | 12-120 | 12-120 |
電機功率 Power | 3 | 7.5 | 11 |
可調速度 Speed change | 2350-4360 | 1000-2400-4400 | 1000-2400-4400 |
重量 Weight | 150 | 250 | 420 |
外形尺寸(長×寬×高) Overall Size（L×W×H） | 1050×670×1400 | 1200×900×1520 | 1300×1000×1600 |
